Electrical Safety Matting Class 4 – 36 kV Rated Insulating Mat 1m × 5mm – BS EN 61111 Certified – High Voltage Protection - Linear Metre


Price:
Sale price£220.71
 (Per Metre)
Free UK Shipping
Stock:
In stock (50000 units), ready to be shipped
m


sold this week | Low stock on popular sizes

    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse


Description



Class 4 Electrical Safety Mat – 36 kV Rated, 5 mm Rubber Insulation Mat

Protect your workforce with Electrical Safety Matting Class 4 (36 kV) — the highest-rated insulating matting conforming to BS EN 61111:2009.

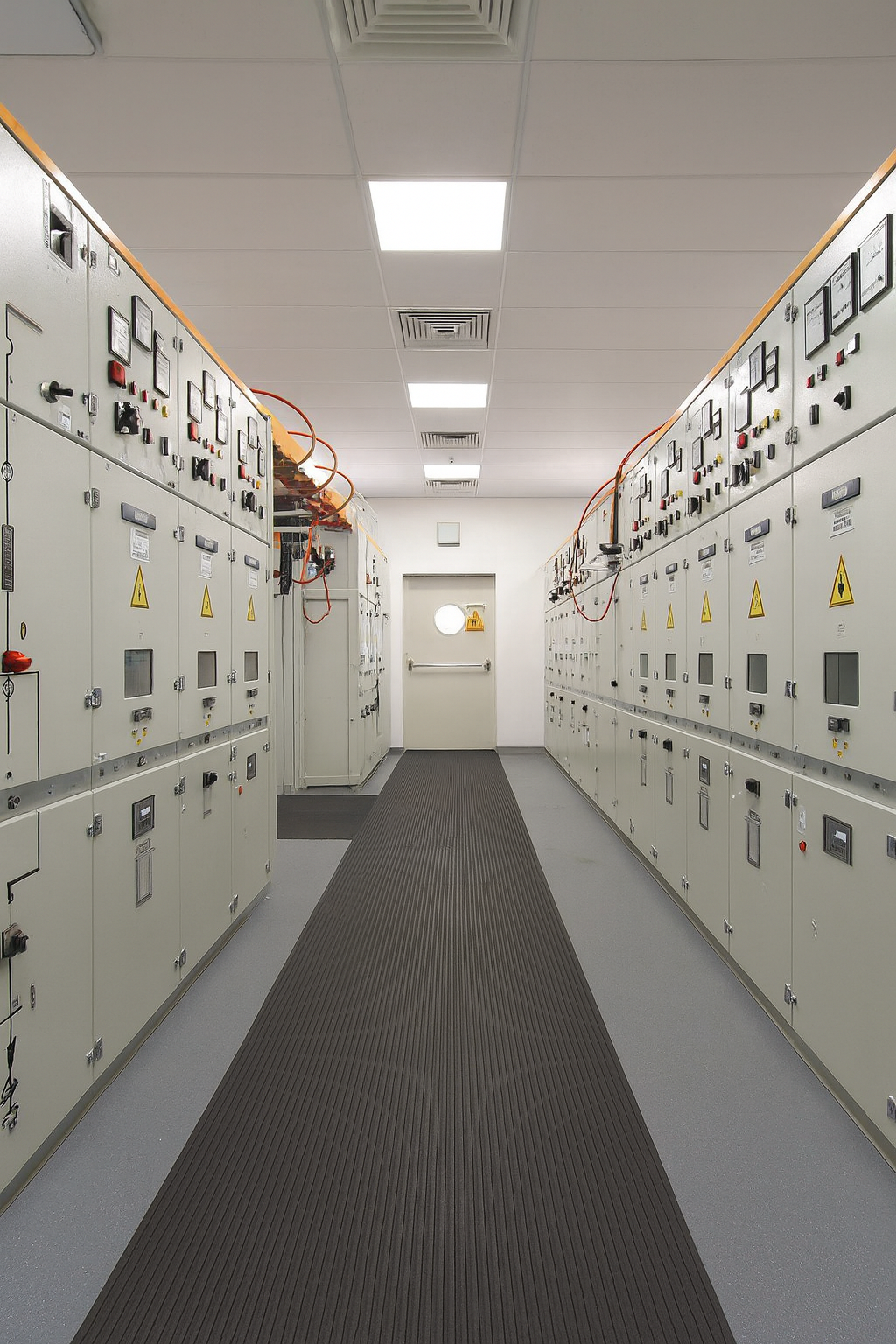

Engineered for extreme voltage conditions, this mat provides a safe, slip-resistant, and durable floor covering in switchgear rooms, transformer areas, and power distribution zones.

The 5 mm thick construction ensures long-lasting insulation performance while maintaining flexibility for easy installation and trimming.
Each metre length is fully tested and batch-marked to guarantee compliance and traceability.

Whether used in power stations, electrical test bays, or industrial control rooms, this mat delivers unmatched protection against electrical shock and equipment faults.

Technical Specifications:

Specification Details
Product Code ESM4-1.0M-5
Standard BS EN 61111:2009 / IEC 61111
Class 4
Maximum Working Voltage 36,000 V
Width 1,000 mm (1m)
Thickness 5 mm
Surface Finish Fine fluted (top) / Cloth impression (underside)
Colour / Marking Orange underside with class & voltage printed
Temperature Range −20 °C to +70 °C
Chemical Resistance Oil, acid, water resistant
Certification Supplied with batch test certificate
Length Options Sold per metre (cut to required length)

Typical Applications

  • High-Voltage Switchgear Rooms
  • Power Generation Plants
  • Electrical Test Laboratories
  • Transformer Rooms / Substations
  • Motor Control Centres (MCCs)
  • Renewable Energy Facilities (Solar / Wind / Battery)
  • Automation & Industrial Plants
  • Training C

  • Constructed from high‑quality elastomeric rubber, our Class 4 insulation mat is 5 mm thick and supplied in a standard width of 1 metre. The finely ribbed surface provides excellent slip resistance underfoot, while the cloth‑impression backing improves grip on smooth floors.

    Each batch of Class 4 matting is electrically tested at 50 kV and certified for a safe working voltage of 36 kV. Orange colour markings indicate the Class 4 rating and printed voltage markers ensure traceability.

    Typical applications include switchgear rooms, transformer bays, control panels, power stations, industrial test areas and renewable energy facilities. Use Class 4 matting wherever high‑voltage protection and anti‑slip footing are required.

    For more information on selecting the right rubber matting for your facility, see our Rubber Matting Guide.

    entres / Electrical Safety Education Labs
