Electrical Safety Matting Class 2 – 17 kV Rated Insulating Mat 1m × 4mm – BS EN 61111 Certified High Voltage Floor Protection - Linear Metre


Price:
Sale price£125.43
 (Per Metre)
Free UK Shipping
Stock:
In stock (49998 units), ready to be shipped
m


sold this week | Low stock on popular sizes

    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse


Description

Class 2 Electrical Safety Mat – 17 kV Rated, 4 mm Rubber Insulation Mat

Class 2 Electrical Safety Mat – 17 kV Rated, 4 mm Rubber Insulation Mat
Protect personnel working near live electrical equipment with Electrical Safety Matting Class 2 (17 kV Rated).
This high-performance insulating floor matting is manufactured to the BS EN 61111:2009 standard, providing dependable insulation against electrical sho


Constructed from premium EPDM rubber compound, Class 2 safety matting is 4 mm thick and 1 m wide. The fine‑ribbed surface on top provides anti‑slip grip, while a cloth‑impression backing improves stability on smooth floors. Each roll is colour‑coded yellow to identify its Class 2 rating.

Our mats are manufactured and tested to BS EN 61111:2009 / IEC 61111. Every batch is screened at 30 kV and assigned a safe working voltage of 17 kV, offering reliable protection for technicians working on high‑voltage equipment.CClass 2 Electrical Safety Mat – 17 kV Rated, 4 mm Rubber Insulation Mat

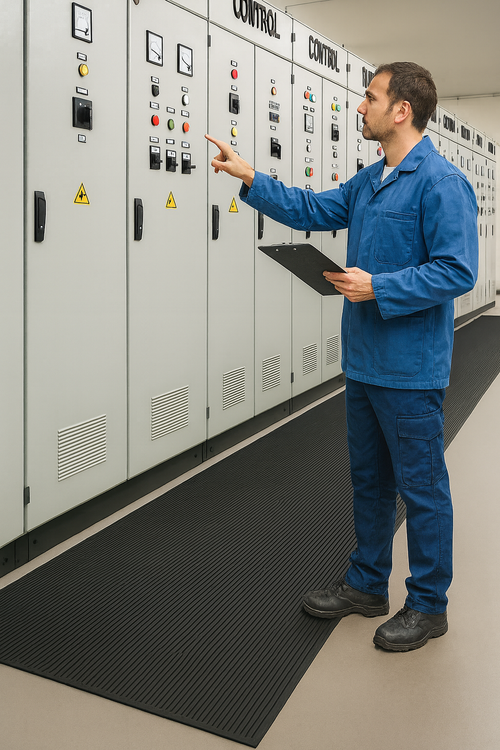

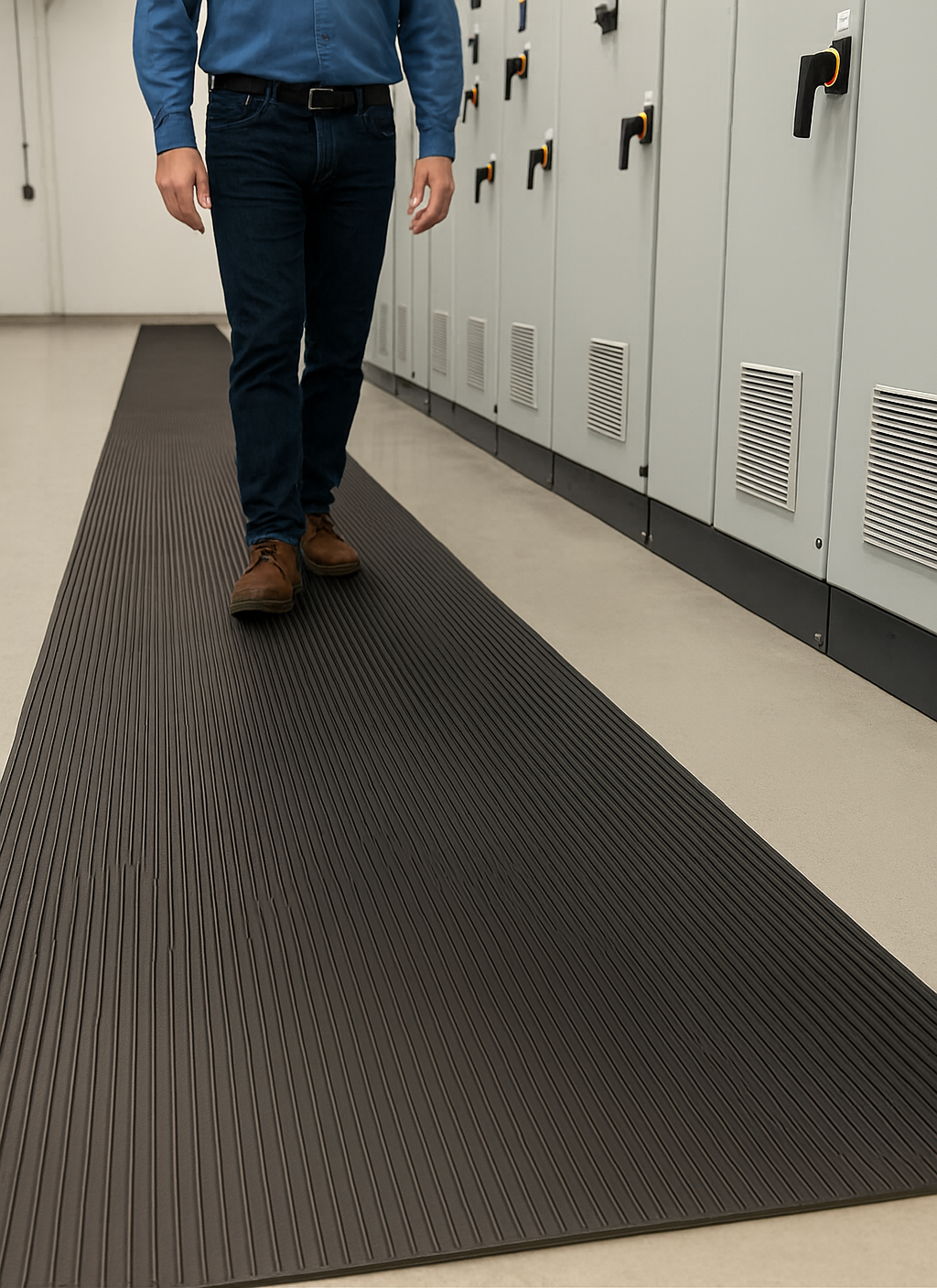

Use this high‑voltage insulation matting in front of switchboards, transformer bays, control panels, and other industrial electrical installations. For help selecting the right rubber matting for your facility, see our Rubber Matting Guide.

Each sheet is precision-engineered from premium rubber compound to deliver exceptional dielectric strength, flexibility, and slip resistance.
The fine-ribbed surface enhances traction even in oily or damp environments, while the cloth-impression backing ensures the mat stays in positioo.

Ideal for installations around control panels, switchboards, transformers, and testing bays, this matting delivers superior safety compliance and reliability for electrical professionals.

Technical Specifications

Specification Detail
Product Code ESM2-1.0M-4
Standard BS EN 61111:2009 / IEC 61111
Class 2
Max Working Voltage 17 000 V
Width 1 000 mm (1 m)
Thickness 4 mm
Surface Finish Fine fluted (top) / Cloth impression (underside)
Colour / Marking Yellow underside with printed voltage & class info
Temperature Range –20 °C to +70 °C
Resistance Oil, acid, water
Certification Supplied with batch test certificate
Supplied Per Linear metre (cut to length)

Typical Applications

  • Switchgear & control rooms
  • Electrical test labs & maintenance bays
  • Transformer rooms & substations
  • Power generation plants
  • MCCs (motor control centres)
  • Industrial automation zones
  • Renewable energy facilities (inverter rooms, solar plants)
  • Technical training & education workshops
  • Data centres and telecom UPS rooms
